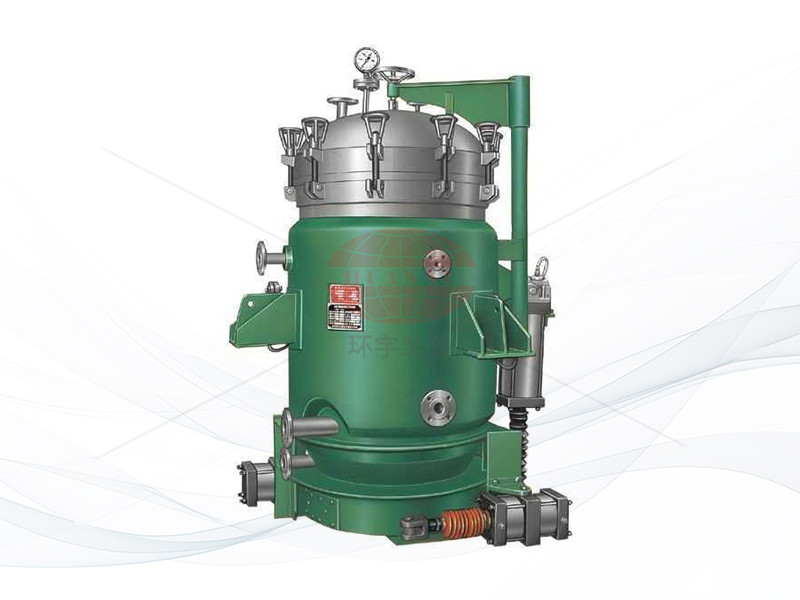

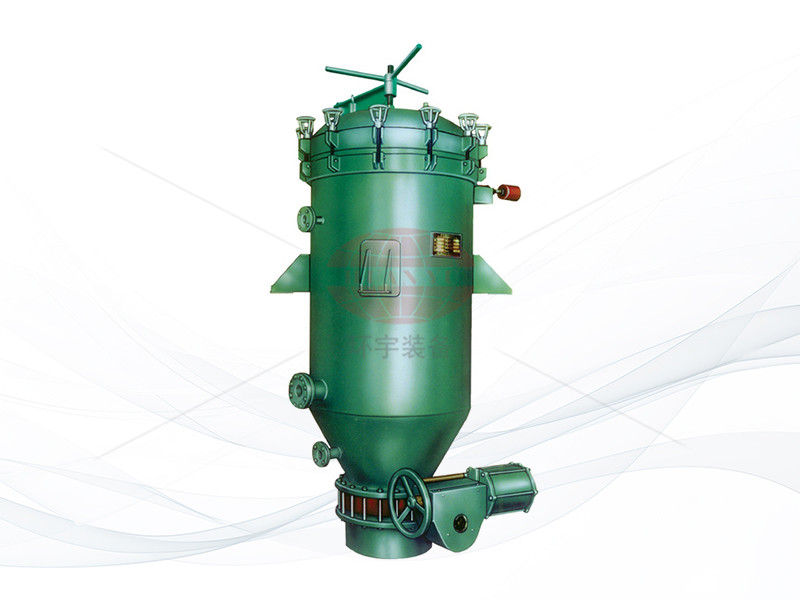

The NYB series plate filter is an energy-saving, airtight, and precision filtration equipment that is widely used in industries such as chemical, petroleum, coatings, food, and pharmaceuticals.
This product has a unique design structure, small size, high filtration efficiency, transparent and fine filtrate, no material loss, does not consume filter paper, filter cloth or paper core, and only consumes a small amount of filter aid, so the filtration cost is very low, and the equipment is easy to operate, maintain and clean.

Purpose

Structure and characteristics

The main body of the filter is composed of a shell, filter screen, lifting structure, automatic slag discharge device, etc. The filter screen is composed of multiple layers of stainless steel wire mesh and is installed on the central aggregate pipe, making disassembly and cleaning very convenient. When filtering, the filtrate containing filter aid enters the filter through a conveying system (pump or other tool), forming a stable filter cake on the filter screen (the filter cake layer can provide countless fine channels), and then the filtrate is filtered through the micropores of the filter cake layer.

Scope of application

① Oils and fats: crude oil, bleaching earth, hydrogenated oil, winterized oil, stearic acid, fatty acids, etc.
② Petrochemical products: diesel, lubricating oil, paraffin, mineral oil products, etc.
③ Beverages: beer, juice, alcoholic beverages, milk, etc.
④ Organic chemicals: various organic acids, alcohols, benzene, aldehydes, etc.
⑤ Paint and varnish: resin, varnish, dye, genuine paint, etc.
⑥ Inorganic chemicals: Bromine water, potassium cyanide, fluorite, etc.
⑦ Food: gelatin, vinegar, starch, syrup, sweet water, etc.
⑧ Medicine: hydrogen peroxide, vitamins, etc.
⑨ Mineral resources: coal shavings, coal slag, etc.
⑩ Other: Purification of air, water, etc.

Technical parameter

Model	Filter area(m²)	Filter cake volume (L)	Processing capacity (T/h)			Work pressure (MPa)		Working temperature (℃)	Filter cylinder volume (L)	Host weight (kg)
Model	Filter area(m²)	Filter cake volume (L)	Grease	Resin	Drink	Rated pressure	Maximum pressure	Working temperature (℃)	Filter cylinder volume (L)	Host weight (kg)
NYB-2	2	30	0.4-0.6	1-1.5	1-3	0.1-0.4	0.5	≤150	120	300
NYB-4	4	60	0.5-1.2	2-3	2-5				250	400
NYB-7	7	105	1-1.8	3-6	4-7				420	600
NYB-10	10	150	1.6-3	5-8	6-9				800	900
NYB-12	12	240	2-4	6-9	8-11				1000	1100
NYB-15	15	300	3-5	7-12	10-13				1300	1300
NYB-20	20	400	4-6	9-15	12-17				1680	1700
NYB-25	25	500	5-7	12-19	16-21				1900	2000
NYB-30	30	600	6-8	14-23	19-25				2300	2500
NYB-36	36	720	7-9	16-27	23-30				2650	3000
NYB-40	40	800	8-11	21-34	30-38				2900	3200
NYB-45	45	900	9-13	24-39	36-44				3200	3500
NYB-52	52	1040	10-15	27-45	42-51				3800	4000
NYB-60	60	1200	11-17	30-52	48-60				4500	4500
NYB-70	70	1400	12-19	36-60	56-68				5800	5500
NYB-80	80	1600	13-21	40-68	64-78				7200	6000
NYB-90	90	1800	14-23	43-72	68-82				7700	6500

Appearance and installation dimensions

Model	Barrel diameter	Filter spacing	Imports and exports	Overflow outlet	Slag discharge outlet	Height	Cover an area
NYB-2	φ400	50	DN25	DN25	DN50	1550	620×600
NYB-4	φ500	50	DN40	DN25	DN50	1800	770×740
NYB-7	φ600	50	DN40	DN25	DN250	2200	1310×1000
NYB-10	φ800	70	DN50	DN25	DN300	2400	1510×1060
NYB-12	φ900	70	DN50	DN40	DN400	2500	1610×1250
NYB-15	φ1000	70	DN50	DN40	DN500	2650	1710×1350
NYB-20	φ1000	70	DN50	DN40	DN500	2950	1710×1350
NYB-25	φ1100	70	DN50	DN40	DN500	3020	1810×1430
NYB-30	φ1200	70	DN50	DN40	DN500	3150	2030×1550
NYB-36	φ1200	70	DN65	DN50	DN500	3250	2030×1550
NYB-40	φ1300	70	DN65	DN50	DN600	3350	2130×1560
NYB-45	φ1300	70	DN65	DN50	DN600	3550	2130×1560
NYB-52	φ1400	75	DN80	DN50	DN600	3670	2230×1650
NYB-60	φ1500	75	DN80	DN50	DN600	3810	2310×1750
NYB-70	φ1600	80	DN80	DN50	DN700	4500	3050×1950
NYB-80	φ1750	80	DN80	DN50	DN700	4500	3210×2100
NYB-90	φ1850	80	DN80	DN50	DN700	4650	3300×2200
